- AK Stereo
Professional-grade AK Stereo MIC Kit
Through our collaboration with DPA(Danish Professional Audio),
manufacturer of world-class microphones, we proudly present the AK Stereo MIC Kit.

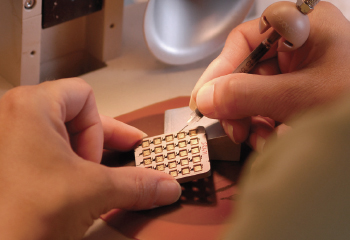

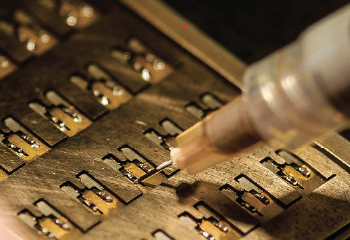

The AK Recorder's AK Stereo MIC Kit comes with DPA's model SC4061 omnidirectional miniature MIC set. The DPA SC4061 MIC is manufactured exclusively at DPA's factory in Asnæs, Denmark. During production, each microphone undergoes scores of testing by highly trained members of our Quality Assurance team and must pass a 15-point function inspection before receiving final approval.
The SC4061 MIC can be used to record vocals, musical instruments and interviews. Its SPL(Sound Pressure Level) of 144dB helps produce an optimal recording sound that is free of clipping, even when a loud noise is introduced.
The SC4061 MIC's level of quality is proven by the number of studios and sound engineers who use it worldwide.

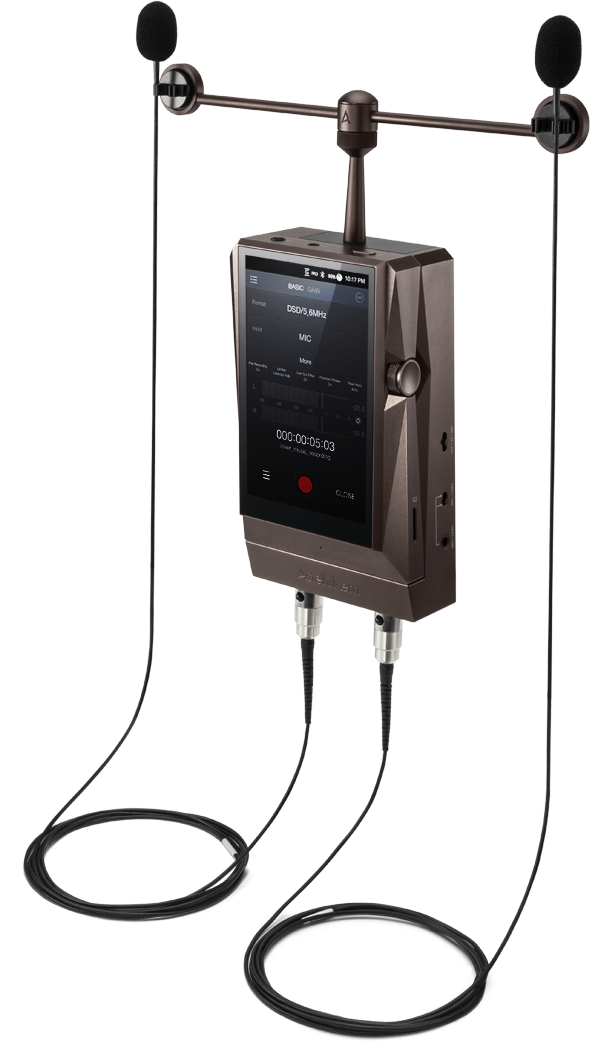

The SC4061 MIC can be secured to the AK Recorder with an optional stereo-mic mount.

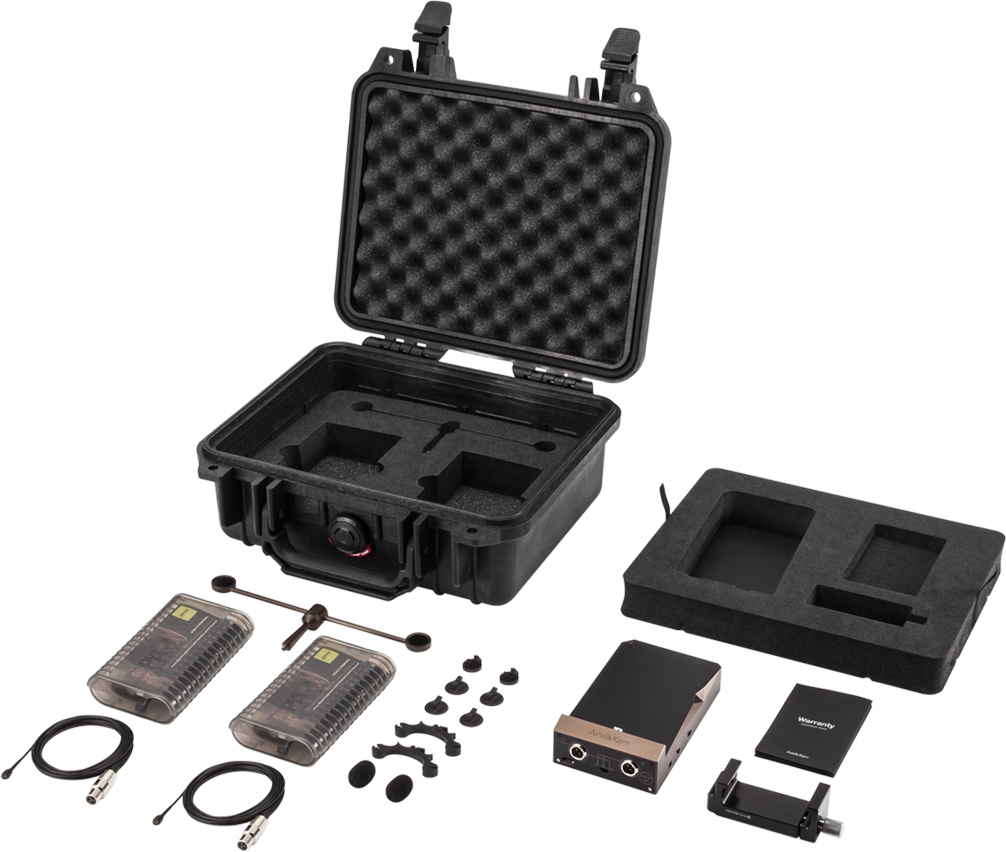

Additionally, a fastening accessory comes with the microphone to secure it on top of a musical instrument, such as a piano or a violin. A shoe mount adapter comes with the microphone to fasten the recorder on a tripod. All AK Stereo MIC Kit accessories come packaged in a specially-designed Pelican case for safe and convenient storage and travel.
The AK Stereo MIC Kit is all you need for a perfect recording experience. Simply combine the components and press the "Record" to start.
AK Stereo MIC Kit
- AK Recorder Device
- DPA SC4061 MIC x2
- Mini XLR to XLR Cable x2
- Tripod Grip
- Magnet Mount
- Universal Mount
- MIC Stand
- String Holder
- Wind Screen
- Quick Start Guide
- Warranty Card
PRF11 / AK Stereo MIC Kit
2 channel, Stereo recording
mini XLR 3pin type MIC/LINE x2(L/R), AES3 x1(L), 3.5mm MIC/LINE x1
mini XLR 3pin map
1 : Ground(G) / 2 : Positive(+) / 3 : Negative(-)
MIC / LINE1 / AES3 select key x1, MIC2 / LINE2 select key x1, Phantom Power select key x1 (off / 5V / 48V)
4,700mAh 3.7V Li-Polymer Battery
Continuous Recording Time
about 4hours (24bit/96kHz WAV, External Mic & Phantom Power 48V)
3.17 ”(80.7 mm) [W] x 5.01 ”(127.4 mm) [H] x 1.17 ”(29.9 mm) [D]
8.85 oz (251 g)
Recording Bit Rate
WAV : 16 / 24 / 32bit, DSD64, DSD128
44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384kHz
10Hz ~ 40kHz
A/D Dynamic Range
116dB A-weighted bandwidth
Equivalent Input Noise
MIC : -126dBu, 150ohm source, A-weighted filter
MIC : 0.0004% max (1kHz, -15dBu) / LINE : 0.0006% max (1kHz, -15dBu)
MIC : 9 to 60dB, 3.0dB increments / LINE : -96 to 22dB, 0.5dB increments
Low Cut Filters
40 ~ 240Hz in 10Hz steps @ 6,12,18,24dB/oct
Compressor & Limiter
0 ~ -10dBFS, 1:2 ~ 1:20; Limiter, 1~1,000ms attack time, 10~2,000ms release time
5V / 48V
- Recording Bit Rate
DPA SC4061 MIC
Sensitivity, nominal, ±3dB at 1kHz
6mV/Pa; -44dB re. 1V/Pa
Equivalent noise level, A-weighted
Typ. 26dB(A) re. 20µPa(max. 28dB(A))
S/N ratio(A-weighted), re. 1kHz at 1Pa(94dB SPL)
Total harmonic distortion(THD)
< 1% THD up to 123dB SPL peak; < 1% THD up to 120dB SPL RMS sine
Max. SPL, peak before clipping
Phantom Power 5V
0.21 ”(5.4 mm)
0.5 ”(12.7 mm)
5.9 ft(1.8 m)
0.26 oz(7.5 g)
-40°F to 113°F(-40°C to 45°C)
- Directional Pattern
- Audio was NOT muted during the measurement.
- The image/specification may be changed without notice to improve product performance and quality.
