ALL-IN-ONE SOUND SYSTEM
Astell&Kern has conducted extensive research to accurately deliver music how the artists' indented
and with the emotion of live performances to lovers of music everywhere.
As a world-wide leader in high-resolution audio products, Astell&Kern has often pondered:
"Is a standout music player enough to truly experience and feel the original sound?"
We have found the answer in the AK T1.

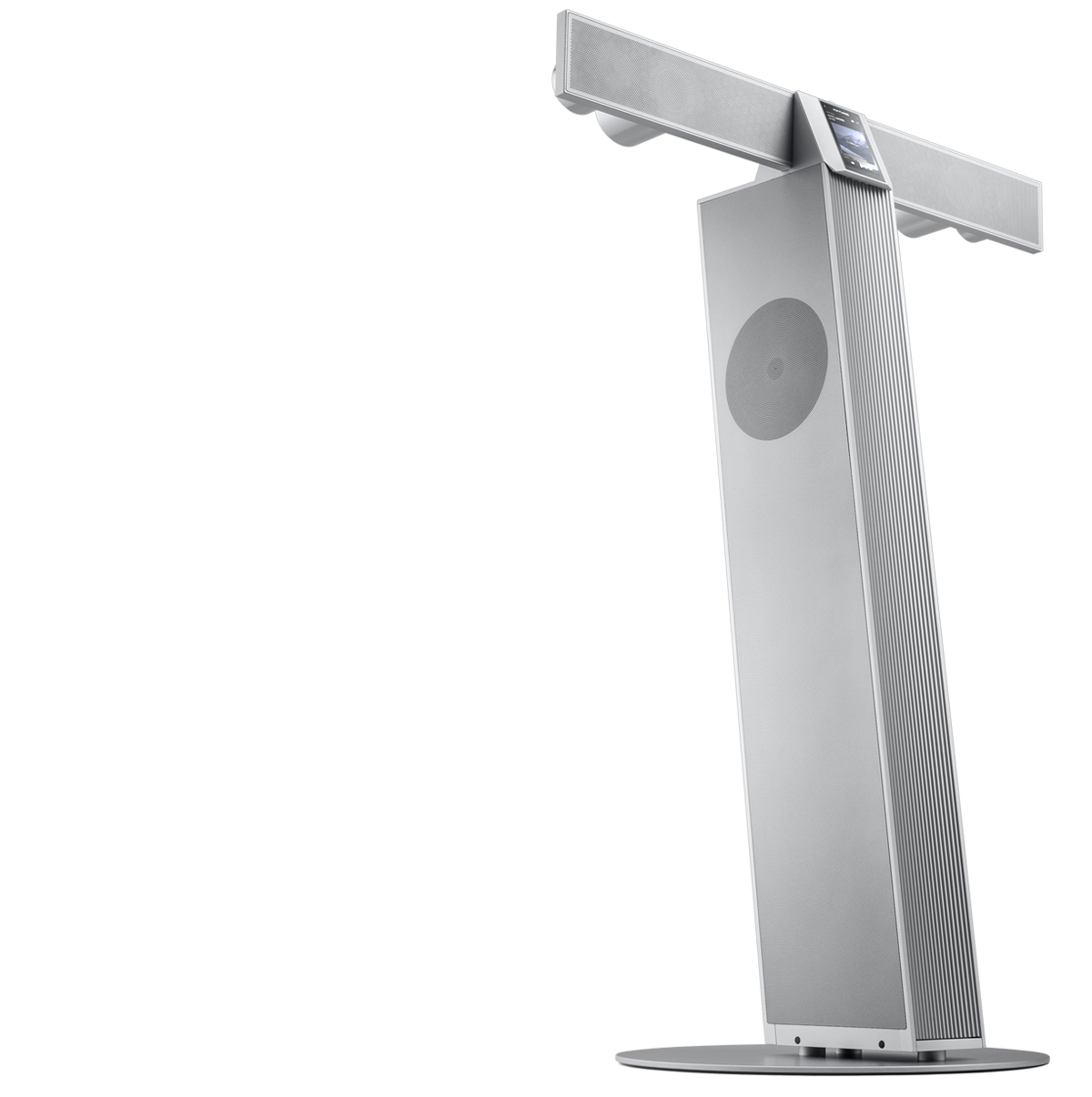

The AK T1 is Astell&Kern's very first all-in-one sound system.
The AK T1 encompasses all of these features.
Power up the AK T1 and immediately begin enjoying your music.
The AK T1 is another masterpiece from Astell&Kern that accurately conveys the artist’s sound
just like you were there when it was performed live.
- Wired and wireless DLNA support,
- High-resolution Wireless audio playback via aptX codec,
- Internet radio service support, providing thousands of music channels,
- AUX & optical inputs, USB storage & microSD card support,
- Integrated Astell&Kern music player provides a diverse range of playback options,
- Hybrid amplifier (analog and digital) optimized for best possible sound,
- Six speaker system delivers the utmost clarity in sound.
MQS Player
The AK T1 is capable of high-resolution audio playback via wide variety of audio inputs and
features the identical, perfect sound design seen in Astell&Kern's portable players that have
been highly praised by users all over the world.
The acclaimed Cirrus Logic CS4398 DAC featured in Astell&Kern's portable players is back in the
AK T1 in a dual-DAC configuration.
The combination of the exceptional Astell&Kern MQS player performance with the perfect speaker
and amplifier system of the AK T1 allows you to experience a superb, wide, high resolution sound
unlike any other wireless network speaker available.
With support for USB storage devices, microSD cards, DLNA networking, auxiliary and optical
inputs, the AK T1 supports playback of music from any source device.
The AK T1 is truly an all-in-one sound system.
Hybrid Amplifier
Typically, the overall sound quality from an analog amplifier tends to be delicate and soft,
but the disadvantage is low efficiency. Conversely, a digital amplifier is highly efficient,
but high frequencies have a tendency to produce harsh sound.
Because of these disadvantages, the tightness of the low frequencies are lost when the highs are
softened and vice versa. In other words, it's difficult to achieve a proper balance of treble and
bass if only one amplifier is used to drive the speakers.
An amplifier appropriate for the characteristics of each speaker unit is implemented
in the AK T1 using a bi-amping technique.
A hybrid type amplifier system was implemented rather than using a single type to maximize the
advantages of both analog and digital amplifiers. In the hybrid amplifier system, an analog
amplifier drives the tweeters while the digital amplifier drives the mid range and woofers.
The hybrid amplifier system of the AK T1 uses a dedicated amplifier appropriate for a specific
frequency range so that listeners can experience perfectly balanced sound.
AK T1 Amp Diagram
Perfect Balance
Without going beyond a certain level of Hi-Fi audio systems, achieving great sound through speakers can
be a challenge. The six speaker units in the AK T1 deliver perfectly balanced lows, mids, and highs
without compromising a particular range of sound.
To prevent vibrations generated in the low range, the AK T1 contains an aluminum enclosure; along with a
dedicated low-range, high-pass filter (subsonic filter) for deep, tight, and clean bass.
In constructing the 3-way speaker setup, Astell&Kern did not take any shortcuts that would overlap the
treble and bass. To maximize the purity of the mid range sound, a direct connection to the amplifier is
made without the use of any gain adjustment device to cloud the sound.
A 4-way crossover filter is used to prevent overlapping audio frequencies in the low-order crossover
filters.
Audio frequencies are completely separated through the use of the 4-way crossover, providing distinct
playback of each sound range with no unnecessary bass bleeds into the high-frequency tweeters, which
provides the best possible sound performance.
By optimizing each unit for maximum performance, the AK T1 is able to deliver the most precise, nuanced
sound that typical speakers can never match.
True, original sound from a small form factor system can only be found in the Astell&Kern AK T1.
AK T1 Frequency Band Configuration
Smart Network
Say goodbye to cumbersome cables, the Astell&Kern AK T1 is wireless!
?
With the AK T1, easily play audio from multiple sources such as a NAS device, or an Astell&Kern music
player through a wired LAN or Wi-Fi DLNA connection. In addition to DLNA networking, the AK T1 supports
the Wireless aptX codec for high-resolution audio playback not available with standard Wireless
connections.
Internet radio service is also available on the AK T1. The thousands of channels available on vTuner.
A vast selection of music is available to you through a wired or wireless network connection on the AK
T1.

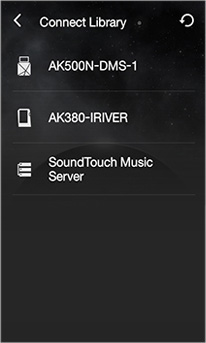

Connect Library

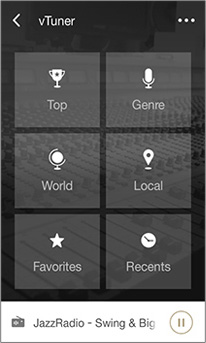

vTuner

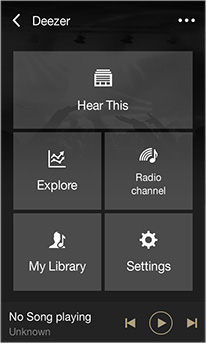

Deezer
Advanced Control

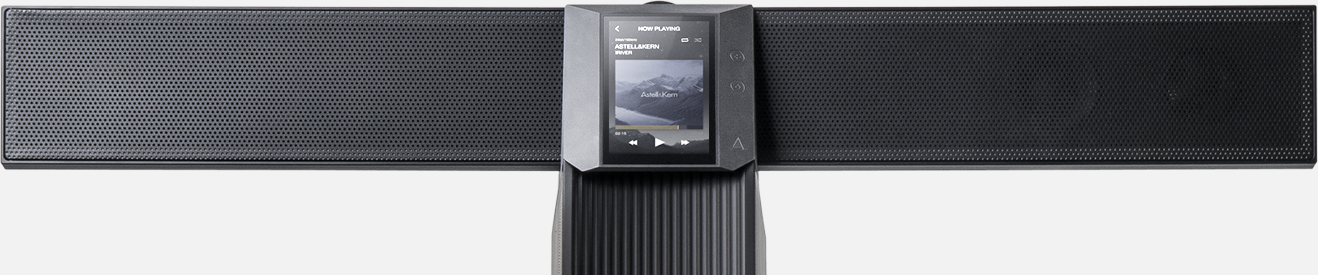

The AK T1 features a large 4-inch (101.6mm) touchscreen display, offering the industry’s most
convenient and intuitive user interface.
Turn on the AK T1 and connect to a network with just a few clicks to immediately begin listening to
music.
The touch sensitive Metal Touch control is another unique feature of the AK T1 that cannot be
overlooked. Unlike a typical push button, the AK T1’s Metal Touch technology offers users a
completely new experience.
Simply listen to music stored on an NAS device through the AK T1 by using your smartphone or tablet
with the AK Connect app.
You can also stream music stored on an Astell&Kern portable music player to the AK T1.
The AK T1 excels in delivering the perfect sound you desire through multiple options using an
intuitive interface environment.
Playback audio from a smartphone or tablet and AK380 via Wireless.
Playback audio from the AK500N or AK380.
DESIGN
Next time you are outside, take a moment to listen to the wind blowing.
You will experience a natural, three-dimensional sound. Through there are a number of factors
involved,this natural experience can be distilled to the fine balance and delicate accuracy of sound.
The first three-dimensional stereophonic sound encompasses independent left and right channels.
To experience immersive sound, the left and right channels must have spatial distance between them to
fully utilize the three-dimensional depth.

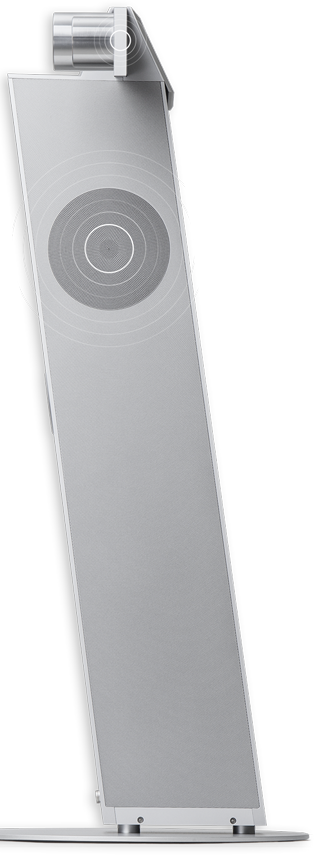

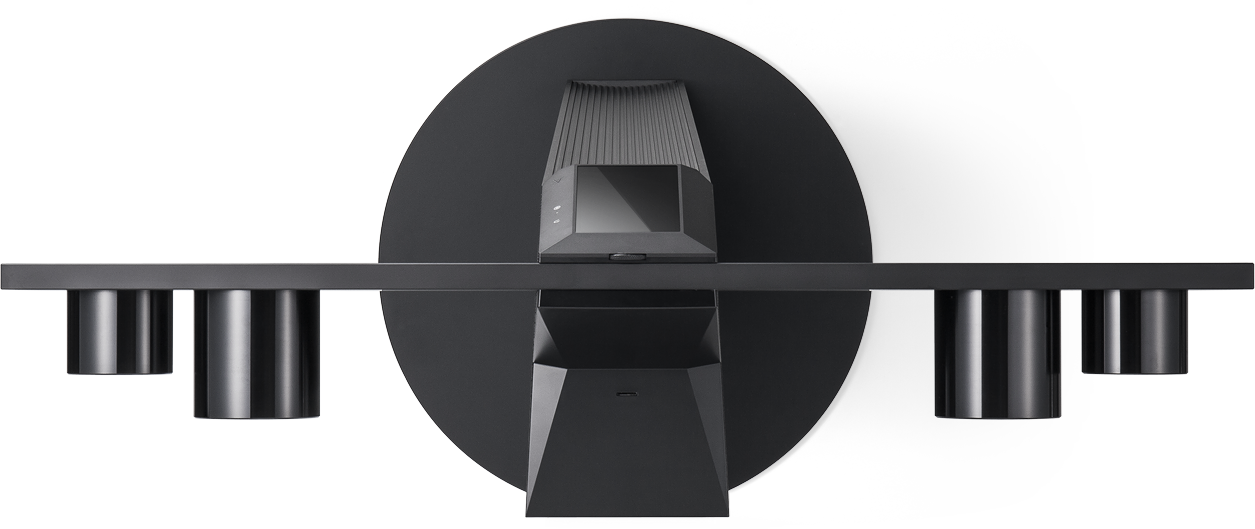

The AK T1 is comprised of three main design elements the purpose of each element is to deliver sound
with extreme accuracy.
First, an independent enclosure is required to avoid conflicting varying frequencies
within the structure that contains the separate left and right channels. In the AK T1,
the units that are responsible for each frequency range are independent and the
structures are exposed to minimize unnecessary volume and surface area.
Second, sufficient distance is required between each audio channel to properly convey a
three-dimensional sense of space and depth of sound. The distance between each audio
channel is optimized for everyday settings and the AK T1 design format allows the sound
quality to remain untarnished for simple, yet extremely detailed sound.
Third, the speakers must have a sense of weight while minimizing unwanted vibrations for
a feeling of natural and transparentsound.

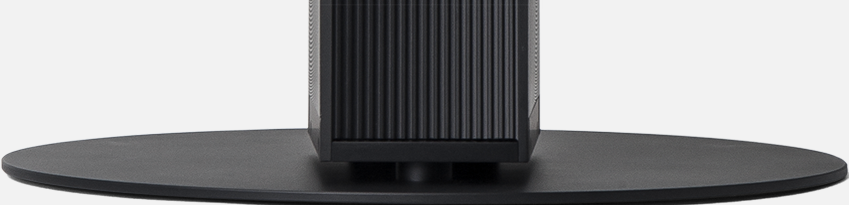

The AK T1 is in a metal enclosure to suppress both internal and external vibration,
creating a neutral and natural sound delivery.
Specification
-
General Specifications
-
Model
AK T1
-
Body Color
Black, Silver
-
Body Material
Aluminum
-
Display
4inch(101.6mm) 480 x 800 Touchscreen
-
Supported Audio Formats
WAV, FLAC, WMA, MP3, OGG, APE(Normal, High, Fast), AAC, ALAC, AIFF, DFF, DSF
-
Sample rate
FLAC, WAV, ALAC, AIFF : 8~192kHz (8/16/24bits per Sample) / DSD64(1bit 2.8MHz) / DSD128 (1bit, 5.6MHz)
-
DAC
Cirrus Logic CS4398 x2 (Dual DAC)
-
Speaker System
3 Way Multi Channel Active Speakers (4th CrossOver filter) / 0.75” Tweeter x2 / 2.0” Midrange x2 / 6.5” Woofer x2
-
Active CrossOver
Hybrid Amplifier (Analog Amplifier for Tweeter, Digital Amplifier for Midrange / Woofer)
-
Frequency Range
48Hz ~ 22kHz
-
Amplifier Output
180W (L/R, 90W x2)
-
Network
Wi-Fi (802.11b/g/n) 2.4GHz, Ethernet (10/100/1,000Mbps), DLNA (UPnP)
-
Audio Inputs
AUX x1, Optical x1
-
Other Inputs
USB type A (Host) x1, microSD card slot x1
-
Internet Radio & Streaming
vTuner
-
Control App
AK Connect (iOS/Android)
-
Dimensions
27.5 ”(700 mm) [W] x 39.2 ”(998 mm) [H] x 15.9 ”(404 mm) [D]
-
Weight
705.4 oz (20 kg)
-
Model
-
Etc.
-
- Audio was NOT muted during the measurement.
- The image/specification may be changed without notice to improve product performance and quality.
-
-
Price
-
Price
$ 3,000
-
