Open Up Your Sound Stage, ACRO S1000
Aluminum alloy enclosure for minimal resonance
ScanSpeak® speaker drivers deliver clear
Distortion-free sound Bass reflex design provides full
tight bass Binding posts for versatile connection options
Big punch from a small package
Conventional speaker builds experience a struggle between the diaphragm of the driver unit and its enclosure.
In order to get optimal performance, the faster a speaker diaphragm vibrates, the sturdier a speaker enclosure is required to house the driver unit.
Lighter weight enclosures can support the movement of a diaphragm, but sacrifice acoustic performance due to the vibrations experienced,
which detracts from sound quality.
The ACRO S1000 uses a sturdy aluminum alloy metal enclosure to withstand the fast vibrations of its diaphragm.
The aluminum alloy minimizes noise and undesirable vibrations, leaving nothing but the air movements captured in your music.
The ACRO S1000 enclosure not only provides acoustic benefits, but it completes the aesthetically pleasing design.
A 2-Way speaker system complete
with hand-built Danish ScanSpeak driver units
The ACRO S1000 uses Danish ScanSpeak driver units, a top choice of high-end loudspeaker manufacturers. This 2-way speaker system uses precise, hand-built driver units made by ScanSpeak, who has provided the highest standard speaker drives for over 40+ years. The ACRO S1000 will open up your sound stage.
0.75” Tweeter delivers a stable, vivid sound
The ACRO S1000 tweeters use Ring Radiator technology, an exclusive technology developed by ScanSpeak. The tweeter features a non-dome-shaped soft diaphragm with a phase plug at its center and a large-scale roll.
The phase plug prevents distortion from high-frequency collision and the Ring Radiator structure provides a high level of sound stability and high frequency band scalability. As a result, you will hear more natural and clear sound.
2.0” Midrange delivers high-definition sound without distortion across the entire band
As the pair of tweeters ensure high-frequency perfection, the main drivers provide effective midrange and bass from its full-range driver units.
Thanks to a powerful neodymium ring motor on the driver units, the midrange drivers deliver a distortion-free, natural, and high-resolution audio experience.

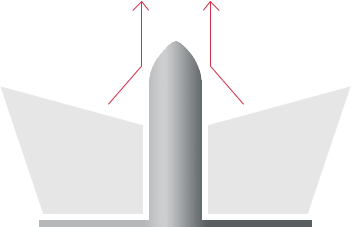

With phase plug

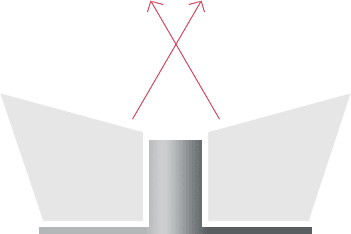

Without phase plug
Bass reflex design for full, tight bass
The ACRO S1000 adopted the bass reflex design to deliver deep, rich bass appreciated by music lovers everywhere. The bass reflex design of ACRO S1000 increases the efficiency of low frequencies by using the resonance characteristics of sound emitted from the unit’s back panel for the ultimate bass reproduction. The rear port of the ACRO S1000 creates a passage for bass reproduction, which reinforces the low end for deeper, richer tones.
Binding posts for versatile connection options
With the binding posts of ACRO S1000, the S1000 is easy to connect and is compatible with many traditional audio systems. High-quality, gold-plated connectors found on the back of each speaker ensures direct and clear interconnections.
* Speaker cable sold separately.
Optimized crossover design for high-resolution audio
You can think of crossovers as an orchestra conductor that manages each speaker drivers' optimal capacities, the sound output in this case, to the fullest.
If any high, mid or low frequencies become overlapped, or misallocated, then the sound becomes stuffy and muffled, diminishing the resolution from the audio system playback. The ACRO S1000 has an optimized crossover design that has been precisely tuned to deliver a clear acoustic experience, with great details of the original
performance. Let your ears judge the well-balanced and orchestrated sound of the ACRO S1000.
DESIGN
Two-way drivers in an aluminum alloy enclosure with optimized crossover design and independent port design brings surprising sound from a small package. Now you can experience the full range of music playback, from the very subtle change to the big punch of peak performances. Enjoy your music more than ever before.
Specification
-
General Specifications
-
Model
ACRO S1000 / DSM11
-
Body Color
Gun Metal
-
Body Material
Aluminum
-
Dimensions
4.32 ”(109.8 mm) [W] x 5.43 ”(137.8 mm) [H] x 5.43 ”(138 mm) [D] each
-
Weight
68.78 oz (about 1.95kg) each
-
Enclosure Type
Bass Reflex
-
Input Terminal
Binding Posts(+/-)
-
Sensitivity
87 dB (2.83V, 1m)
-
Speaker System
2-way speaker system (1st Passive Crossover filter) / 0.75” Tweeter x2 / 2.0” Midrange x2
-
Crossover Frequency
3.2 kHz
-
Nominal Impedance
6.5 ohm
-
Frequency Response
93 Hz-40 kHz
-
Speaker output
MAX 20W x2
-
Model
-
Etc.
-
- Audio was NOT muted during the measurement.
- The image/specification may be changed without notice to improve product performance and quality.
-
-
