Find Your Optimal Sound, SP2000T
Staying true to our philosophy of delivering original audio experiences without compromise,
Astell&Kern strives to design portable music players that reach beyond the capabilities of a standard playback device
to enhance the listener’s music enjoyment.
The SP2000T combines the OP AMP configuration of our SP2000—the culmination
of Astell&Kern's finest audio technology—with a nostalgic vacuum TUBE AMP, adding a vintage feel to the portable player.
Introducing the A&ultima SP2000T. The Ingenious New Solution.
- The Triple Amp System Takes Acoustics to a New Level.
- Vacuum Tube Amplifier Compatible with 2.5 mm, 3.5 mm and 4.4 mm Output Jacks.
- Equipped with ESS ES9068AS QUAD-DAC, for Balanced, Ultra Detailed Sound.
- TERATON ALPHA, Astell&Kern's Ultimate Sound Solution.
- ReplayGain Function to Maintain Consistent Playback Levels between Tracks.
- Dual-Band Wi-fi Support for Uninterrupted Wireless Connection and Improved Compatibility.
- Internal Mechanical Design to Minimize Noise
Dual band Wi-Fi
The "T" in SP2000T does not stand for a specific word,
but rather encompasses design approaches and directions made during the product development process.
The SP2000T inherits the SP2000's true-sound philosophy
Triple AMP System
Vintage Vacuum Tube Amplifier
Everlasting Beauty - SP2000T Copper Nickel Limited Edition
Astell&Kern strives to make products delivering music that touches people's hearts, not just their ears. For this goal, not only have we introduced the most innovative and up-to-date technology to the SP2000T, with SP2000T Copper Nickel, we wanted to capture the characteristics of the Copper Nickel material itself and its unique beauty to complete our philosophy and design values.
Previous flagship models that were manufactured using pure copper were praised by audiophiles for the most musical and organic representation of the original sound and instruments. We wanted to take the SP2000T a step further and complete our design philosophy and sound by creating a copper and nickel alloy.
The SP2000T Limited Edition is made of an alloy of copper and nickel which is used in wind instruments and is known for creating deep, full sound. The SP2000T Copper Nickel will only be produced in limited quantities.
Copper Nickel is silver in color and emanates a beautiful sheen found in jewelry and crafts, taking the SP2000T's seamless design to a higher level. Not only is the design increasingly refined, but it has a very high level of corrosion resistance, a unique property of copper Nickel, giving it a long-lasting beauty, simultaneously being highly antibacterial and resistant to contamination. With high electrical conductivity and low magnetic shielding, you can now experience an alternative sound from that of the original Aluminum SP2000T.
Enjoy the SP2000T Copper Nickel's amazing sound and experience the true artisan design philosophy we have achieved.
TRIPLE AMP SYSTEM is the Next Generation of AMP Technology
The SP2000T exceeds the standard approach to AMP Mode selection, based on the type of music you
are listening to.
Select between TUBE AMP mode, OP AMP mode, or the brand-new HYBRID AMP mode.
OP AMP mode puts Astell&Kern's AMP technology expertise to use, delivering extreme clarity and dynamic sound,
while TUBE AMP mode provides a uniquely warm and musical sound.
HYBRID AMP mode - a first for digital audio players - enhances the resolution and clarity of the existing TUBE AMP mode to express more musical detail.
HYBRID AMP mode, combines the advantages of retro analog performance and high-resolution output, giving you the pleasure of a brand new tonal characteristic.
Experience the unique sound enhancements that AMP technology has to offer.
OP AMP Mode : Extreme clarity and dynamic
TUBE AMP Mode : Uniquely warm and musical
HYBRID AMP Mode : A fresh combination of retro vibes and high-resolution output.
Vacuum Tube Amplifier Com-patible with 2.5 mm, 3.5 mm and 4.4 mm Output Jacks
The SP2000T supports all output types, with no restriction on the type of receiver used,
so you can enjoy the unique characteristics of the vacuum tube.
Real Vacuum Tube
Equipped with the portable-friendly dual-triode KORG Nutube, for a unique TUBE AMP sound.
Nutube offers a reliable continuous playback time of approximately 30,000 hours.It features an anode grid filament structure which operates the same as a triode vacuum tube.It's much smaller, consumes far less power and yet delivers the same audio with rich overtones.
The SP2000T supports all output types, with no restriction on the type of receiver used, so listeners can enjoy the unique characteristics of the vacuum tube.
HYBRID AMP MODE
HYBRID AMP mode supported for the first time by DAP is the essence of Astell&Kern's advanced AMP design technology.
New combinations of sounds can be enjoyed in HYBRID AMP mode, which is based on the OP AMP sound and addition of tasteful warm tones unique to TUBE AMP technology.
Internal Mechanical Design to Minimize Noise

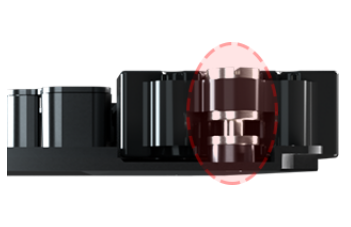

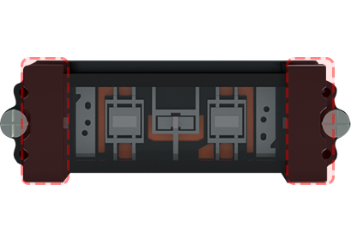

Special Design to Minimize Microphonics Noise
SP2000T features a special design tailored to minimize microphonics (the phenomenon wherein the vacuum tubes generate noise even from a small external impact). Multiple design iterations and verifications have been performed over a long period of time to fix the structural issues of vacuum tubes that generate microphonics noise even from a small impact or vibration. For minimization of mechanical impact and vibration, both sides of the vacuum tube are fixed with flexible silicone covers, and the vacuum tube has been modularized so it is physically separate from the PCB. Astell&Kern goes to great lengths to innovate and design these small components that make a big difference in the quality and sound of our products that no other manufacturer can match. A structure that uses magnetic forces to float the amp in the air, thus minimizing noise from the vacuum tube itself, which is generated when it is exposed to mechanical impact or vibration
Silver Plating Shield Can
Astell&Kern products apply shield cans so that noise and elec-tromagnetic interference, which occur when the countless parts are in operation, do not affect the audio block.
The SP2000T has taken it a step further by applying highly con-ductive, hyper-pure silver plating on the existing shield cans for perfect shielding that provides excellent audio performance.
Astell&Kern Audio Technology Forms the TERATON ALPHA Sound Solution
AK ULTIMATE SOUND SOLUTION, TERATON ALPHA
TERATON ALPHA is AK's Ultimate Sound Solution to produce audio playback that is close to the original sound through the audio output interface by use of effective power noise removal, efficient power management and amplification with minimal distortion. TERATON ALPHA features Astell&Kern's patented technologies, which are the result of tens of thousands of hours of continuous research and development to produce sound close to the original sound the artist and producer intended.
TERATON ALPHA features Astell&Kern's patented technologies, which are the result of tens of thousands of hours of continuous research and development to produce sound close to the original sound the artist and producer intended.
Adoption of Full HD Display for Improved Image Quality
The SP2000T features a full HD screen to provide a higher quality display.
- 441 PPI High pixel density
- 16.7M colors Large color gamut
- 5.0 inch Large display
- 1920*1080 High resolution
Quad-DAC for Perfection of Superior Sound
SThe SP2000T is equipped with four ES9068AS DACs, this allows two DACs per channel for dedicated decoding. The SP2000T achieves a more detailed and balanced sound with great depth and spatial realism.

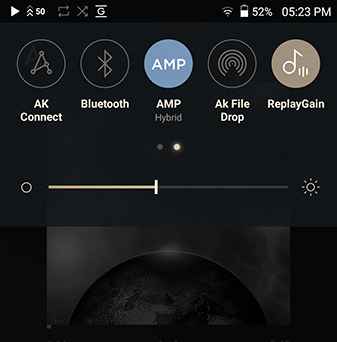

ReplayGain Automatically and Uniformly Adjusts Playback Volume
ReplayGain, which adjusts sound sources with different volumes to an identical level, has been applied. Now, enjoy your own playlists seamlessly through the ReplayGain feature on SP2000T.
* ReplayGain supports up to 24-bit/192 kHz sound sources.
The new AK File Drop function in the SP2000T makes files transfers easier and more convenient. Using AK File Drop, you can freely transfer files wirelessly through a PC, smartphone, or FTP program located on the same network. Music file management is now possible with a cableless, wireless solution.
Wireless Hi-Fi Sound Through BT Sink
The newly introduced BT Sink function connects the SP2000T to an external device via Bluetooth, similar to connecting a smartphone with a BT speaker. Music from an external device, such as a smartphone can now be played back in high-quality on the SP2000T using the BT Sink function.
Real-Time Playback and AMP Mode Information Reflected by Light
Through the softly dispersing LED light, Users are notified of the bit depth information of the song being played or the current AMP mode.
* LED light may be turned on or off in the user settings, and one can choose between the sound source information or AMP mode information displays.
- AMP Mode LED Normal
- AMP Mode LED Tube
- AMP Mode LED Hybrid
- Real-Time Information Confirmed by Light 16bit
- Real-Time Information Confirmed by Light 24bit
- Real-Time Information Confirmed by Light 32bit
- Real-Time Information Confirmed by Light DSD
MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording.Discover more
The master MQA file is fully authenticated and is small enough to stream or download. Visit mqa.co.uk for more information.
Astell&Kern SP2000T includes MQA technology, which enables you to play back MQA audio files and streams,
delivering the sound of the original master recording.
The MQA logo is a trade mark of MQA Limited. © MQA Limited 2018
Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.Discover more
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.
aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.
LDAC and LDAC logo are trademarks of Sony Corporation.Discover more
Roon Ready network players from our partners have Roon’s high-resolution streaming technology built right in.Discover more
They combine simple setup, daily reliability, and support for the highest level of digital audio performance in the industry.
Every Roon Ready player is certified by Roon to guarantee the same stellar experience, regardless of its manufacturer, its price, or its features.
The radial pattern of the volume wheel reflects bursts of light, and the protective surface has been modified to distinguish it from other models.
The side lines fan outward as they extend downwards from the wheel.Similarly to the SP2000, the edge extends to the rear panel, emphasizing the connection between the two models.
The proportions of the face have been adjusted to accommodate the larger form , and the CMF (Color, Materials, and Finish) have all been selected to make the SP2000T stand out from its predecessor, the SP2000.
To reinforce the idea of light illuminating space, we combined the image of the amp's light filling the empty space of the vacuum tube with Astell&Kern's light and shadow concept.
The protector around the volume wheel is encircled, providing an image of a space that has been created from light.
Although the glass on the rear is one piece, it looks like two separate pieces, and the boundary of the two is designed to look onsistent with the wheel protector.
Rather than evoking the coldness of glass, the underside has been designed to express warmth, and the top features a subtle, shimmering design that flares to life when the amp is switched on.
Onyx Black, Copper Nickel
Aluminum, Copper Nickel
5inch FHD 1920 x 1080 Touch display
Supported Audio Formats
WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA
PCM : 8kHz ~ 384kHz (8/16/24/32bits per Sample) / DSD Native: DSD64(1bit 2.8MHz) Stereo /
DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo / DSD512(1bit 22.4MHz), Stereo
Unbalanced 3.0Vrms / Balanced 6.0Vrms (Condition No Load)
ESS ES9068AS x4 (Quad-DAC)
KORG Nutube 6P1
Support up to 32bit / 384Hz Bit-to-Bit Playback
USB Type-C input (for charging & PC & MAC)
Unbalanced Out (3.5mm) / Optical Out (3.5mm) / Balanced Out (2.5mm, only 4-pole supported / 4.4mm, only 5-pole supported) )
802.11 a/b/g/n/ac (2.4/5GHz)
V5.0 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC)
3.07 ”(78.1 mm) [W] x 5.55 ”(141.1 mm) [H] x 0.68 ”(17.5 mm) [D]
Aluminum: about 10.89 oz (309 g)
Copper Nickel: about 17.74 oz (503 g)
Firmware upgrades supported (OTA)
±0.024dB (Condition: 20Hz~20kHz) Unbalanced / ±0.038dB (Condition: 20Hz~20kHz) Balanced
±0.027dB (Condition: 20Hz~70kHz) Unbalanced / ±0.052dB (Condition: 20Hz~70kHz) Balanced
Signal to Noise Ratio
121dB @ 1kHz, Unbalanced / 123dB @ 1kHz, Balanced
-137dB @ 1kHz, Unbalanced / -142dB @ 1kHz, Balanced
0.0003% @ 1kHz, Unbalanced / 0.0003% @ 1kHz, Balanced
0.0004% 800Hz 10kHz(4:1) Unbalanced / 0.0003% 800Hz 10kHz (4:1) Balanced
3.5mm (1ohm), 2.5mm (1.5ohm), 4.4mm(1.5ohm)
- Frequency Response
Reference Clock Jitter
- Clock Jitter
4,200mAh 3.8V Li-Polymer Battery
About 9 hours (Standard : FLAC, 16bit/44.1kHz, Unbalance, Volume 50, LCD Off, LED On, OP AMP Mode)
About 3.5 hours (Standard - 9V/1.67A Fast charging)
About 5 hours (Standard - 5V/2A General charging)
microSD (Max. 1TB) x1
- Built-in Memory
Windows 7,8,10 (32/64bit), MAC OS X 10.7 and up
- Supported OS
- Audio was NOT muted during the measurement.
- The image/specification may be changed without notice to improve product performance and quality.
Onyx Black: $ 2,400
Copper Nickel: $2,700
